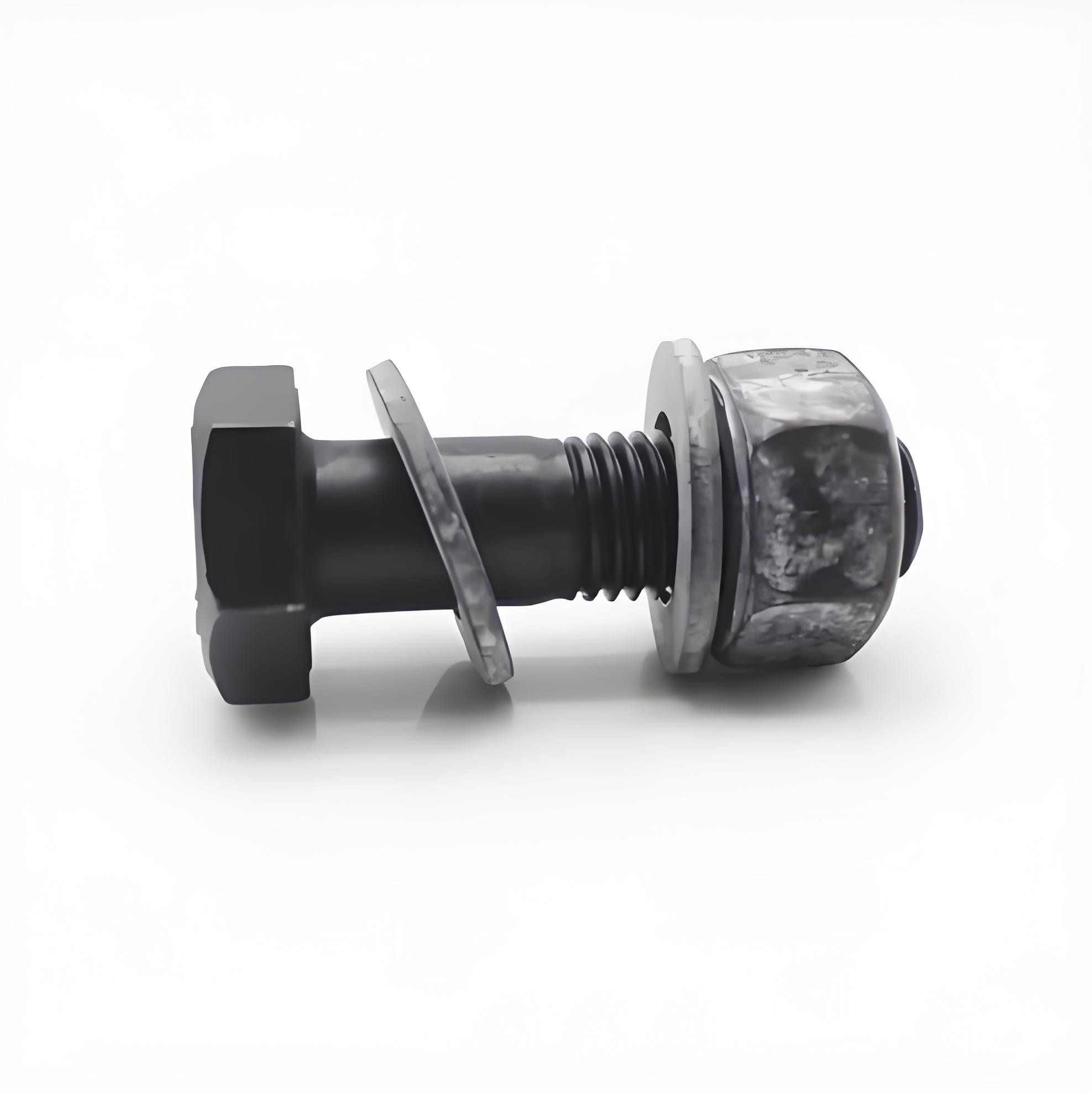

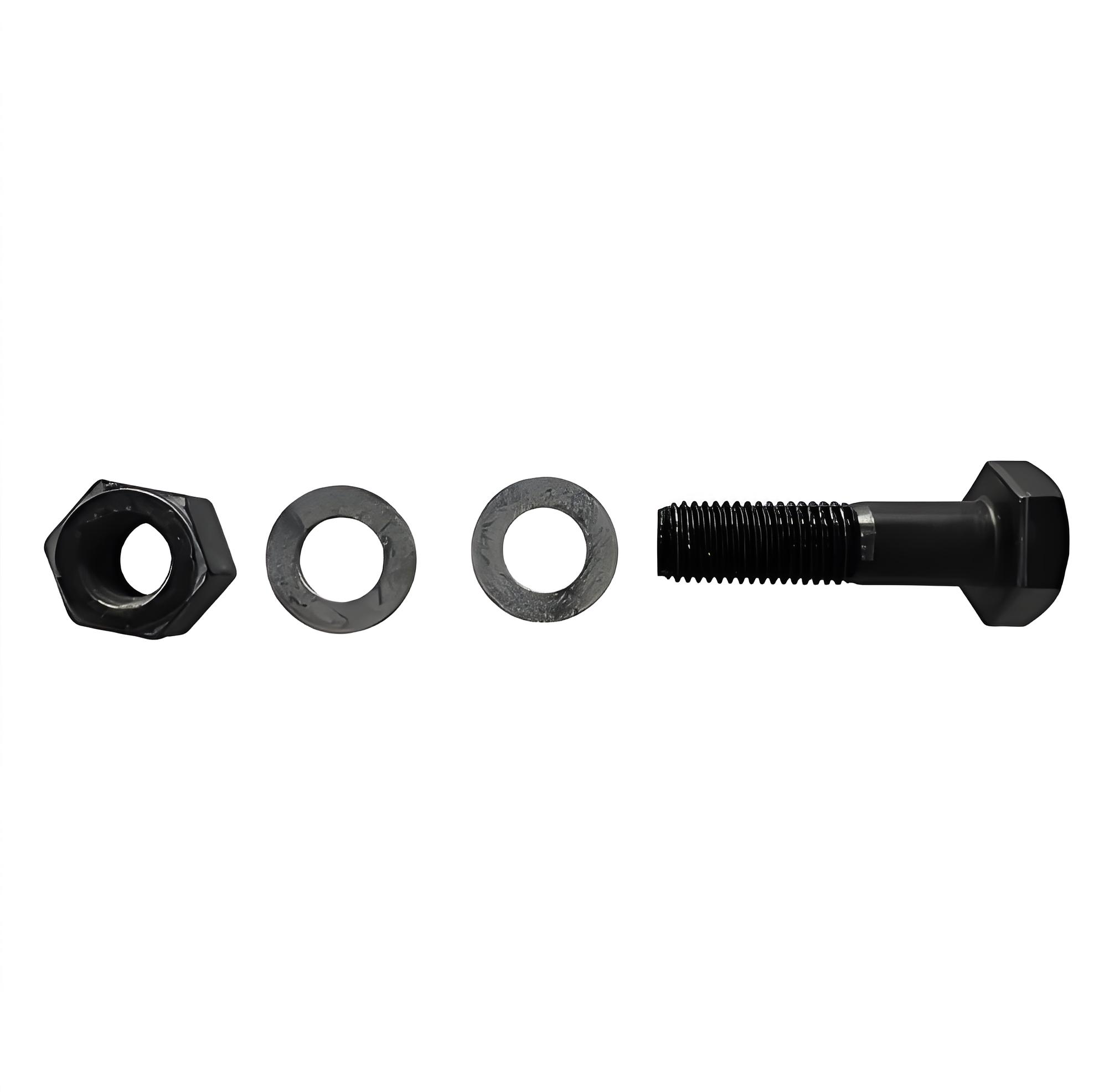

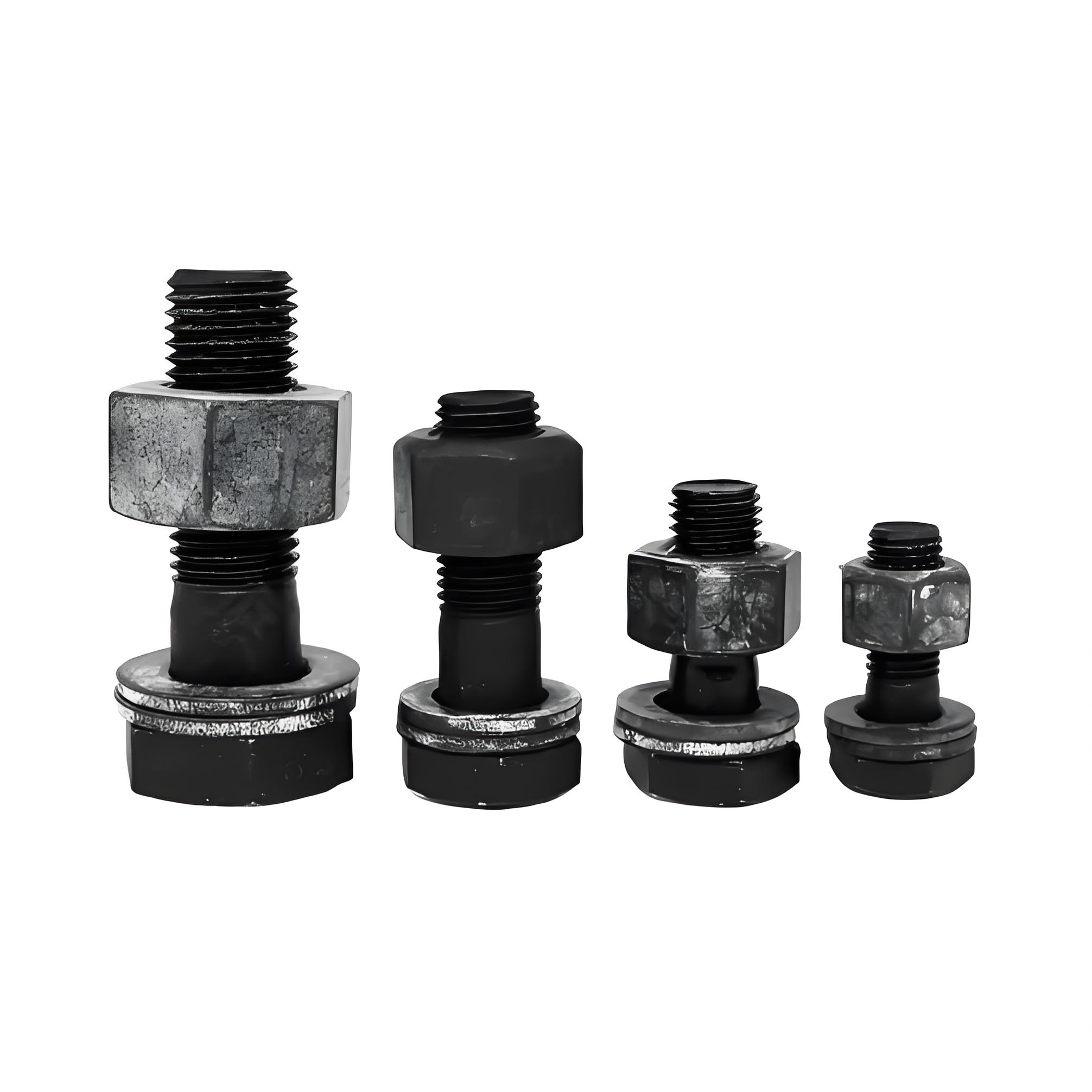

Heavy Hex Structural Bolt and Nut and Washer Set for Steel Structurals Grade 10.9S

Product Detail

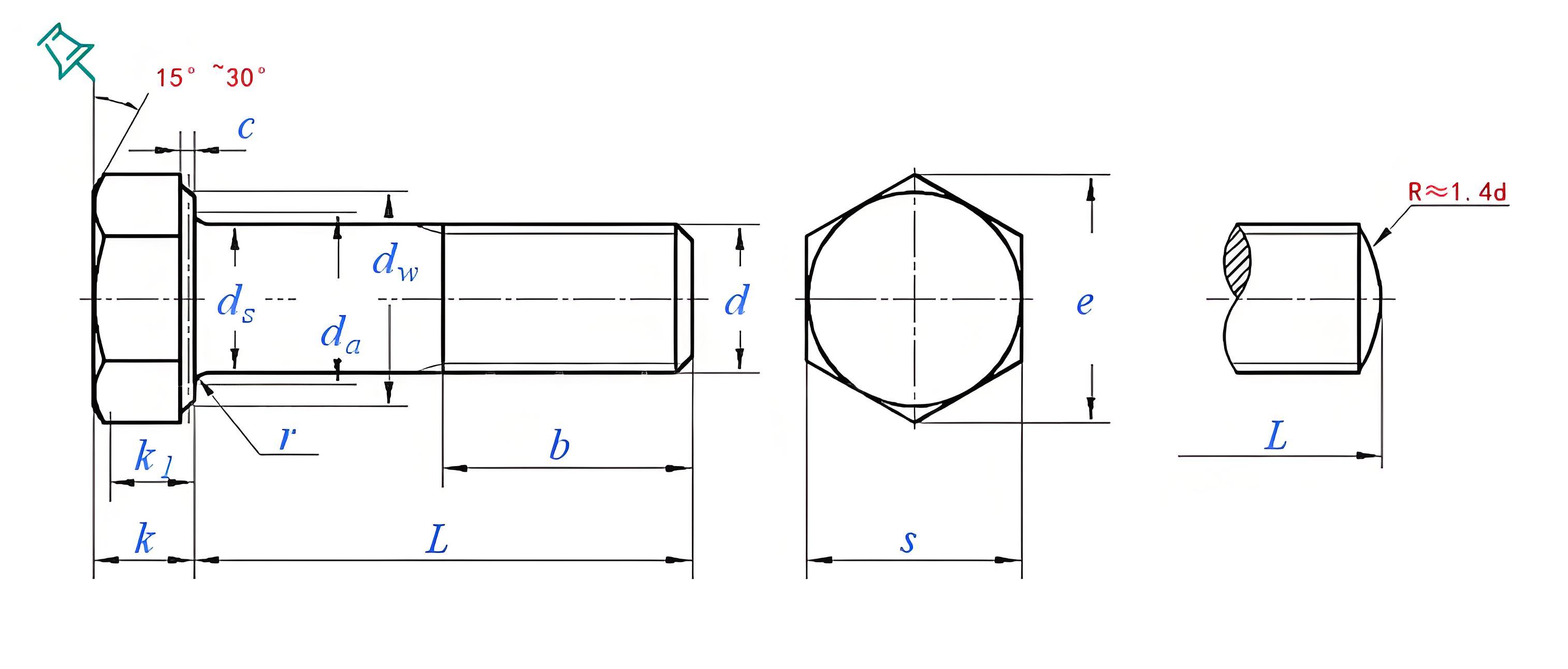

Thread size		M12	M16	M20	(M22)	M24	(M27)	M30	(M33)	M36
d
P	screw pitch	1.75	2	2.5	2.5	3	3	3.5	3.5	4
c	Max	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
c	Min	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
da	Max	15.23	19.23	24.32	26.32	28.32	32.84	35.84	39.84	42.84
ds	Max	12.43	16.43	20.52	22.52	24.52	27.84	30.84	34	37
ds	Min	11.57	15.57	19.48	21.48	23.48	26.16	29.16	32	35
dw	Min	19.2	24.9	31.4	33.3	38	42.8	46.5	51.1	55.9
e	Min	22.78	29.56	37.29	39.55	45.2	50.85	55.37	60.79	66.44
k	Nominal	7.5	10	12.5	14	15	17	18.7	21	22.5
	Max	7.95	10.75	13.4	14.9	15.9	17.9	19.75	22.05	23.55
	Min	7.05	9.25	11.6	13.1	14.1	16.1	17.65	19.95	21.45
k1	Min	4.9	6.5	8.1	9.2	9.9	11.3	12.4	13.97	15.02
r	Min	1	1	1.5	1.5	1.5	2	2	2.5	2.5
s	Max	21	27	34	36	41	46	50	55	60
s	Min	20.16	26.16	33	35	40	45	49	53.8	58.8
1000 pieces of steel weigh approximately ≈ kg		-	-	-	-	-	-	-	-	-
Thread length b		-	-	-	-	-	-	-	-	-
