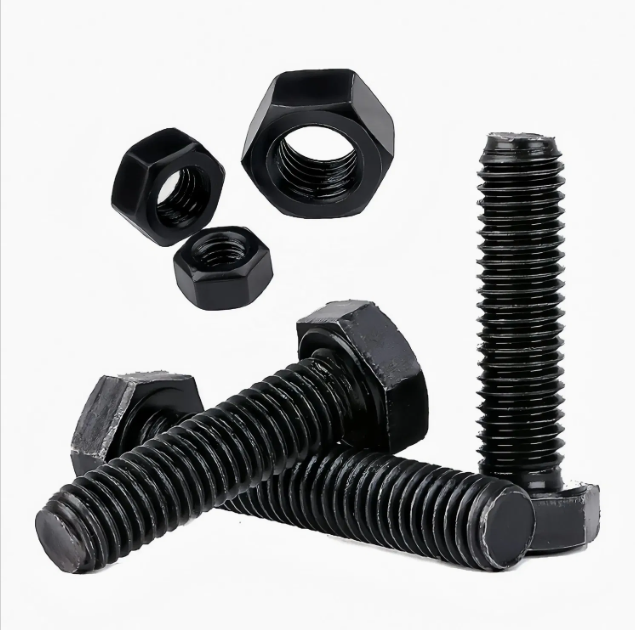

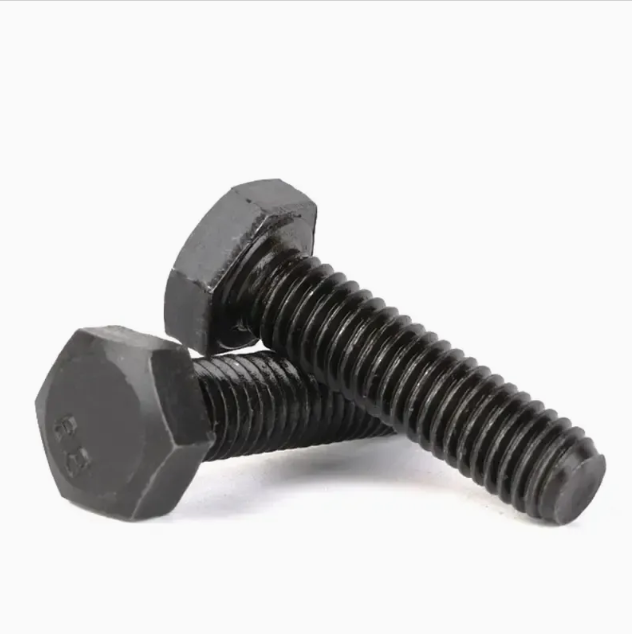

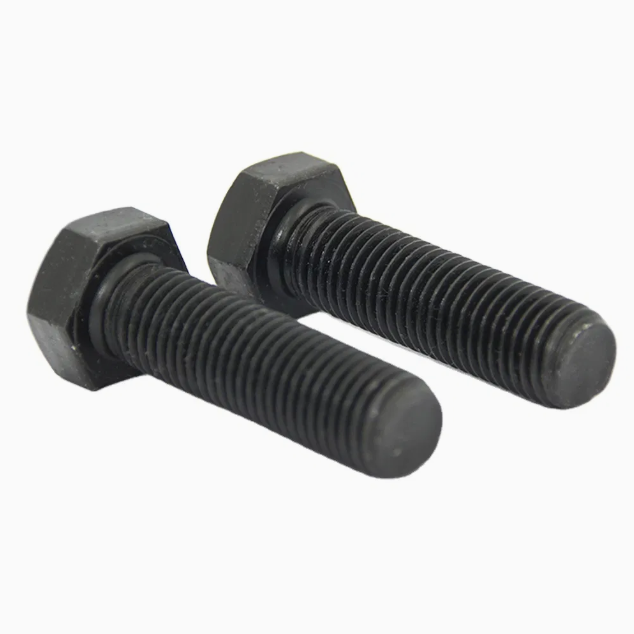

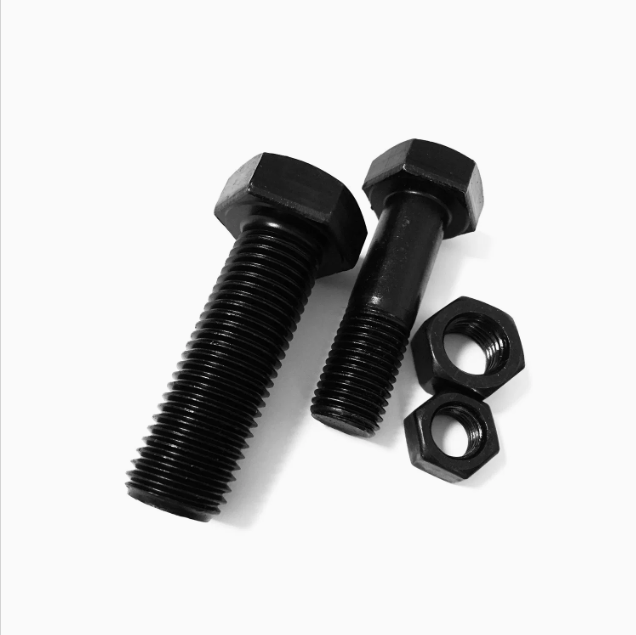

Carbon steel DIN933 bolts with black oxide surface treatment and Hexagon heads

Carbon steel DIN933 bolts with black oxide surface treatment and Hexagon heads

Product Detail

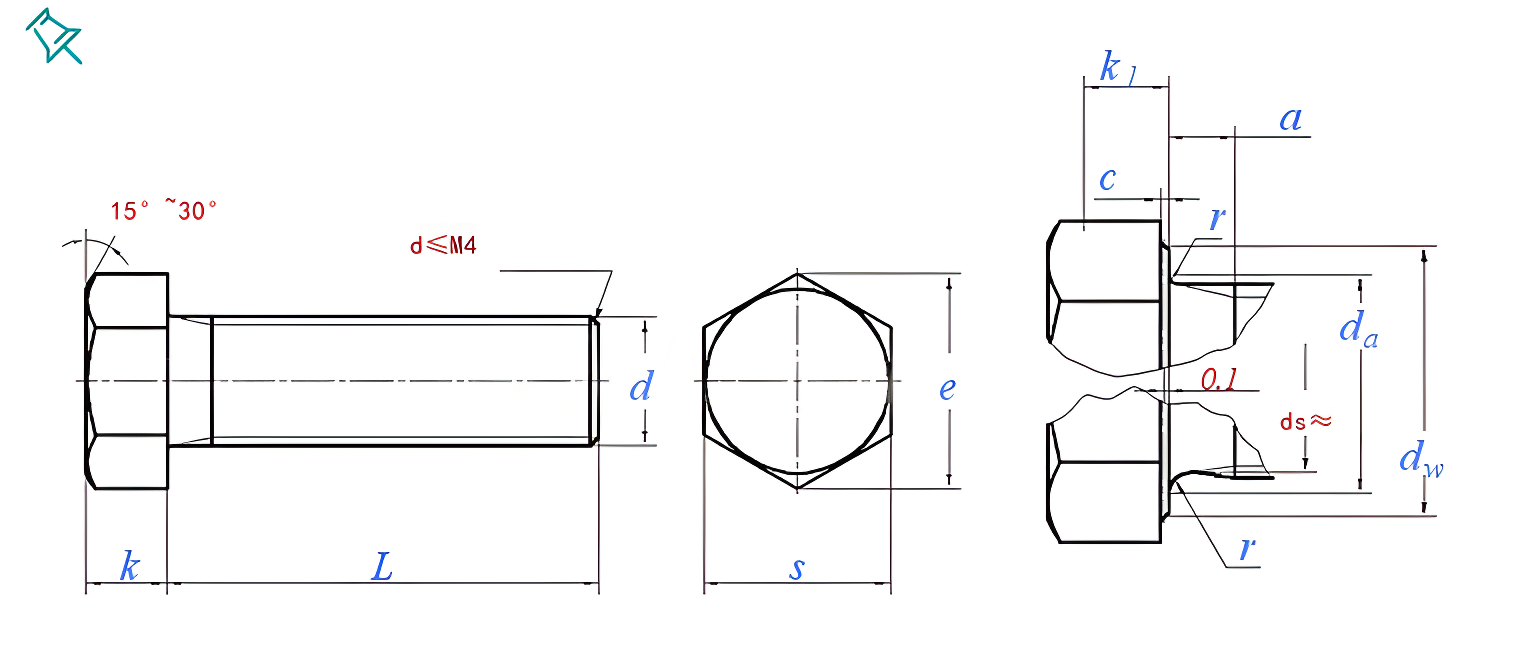

Product Specification

Thread size					M1.6	M2	M2.5	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12	(M14)	M16
d
P		thread pitch			0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75	2	2
a		Max			1.05	1.2	1.35	1.5	1.8	2.1	2.4	3	3	3.75	4.5	5.25	6	6
c		Min			0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2
c		Max			0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8
da		Max			2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7
dw		A	Min		2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5
dw		B	Min		-	-	-	-	-	5.7	6.7	8.7	9.4	11.4	15.4	17.2	20.1	22
e		A	Min		3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75
e		B	Min		-	-	-	-	-	7.5	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17
k		Nominal			1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5	8.8	10
		A	Min		0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82
		A	Max		1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18
		B	Min		-	-	-	-	-	2.6	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71
		B	Max		-	-	-	-	-	3	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29
k1		Min			0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8
r		Min			0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6
s		Max=Nominal			3.2	4	5	5.5	6	7	8	10	11	13	17	19	22	24
		A	Min		3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67
		B	Min		-	-	-	-	-	6.64	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16
